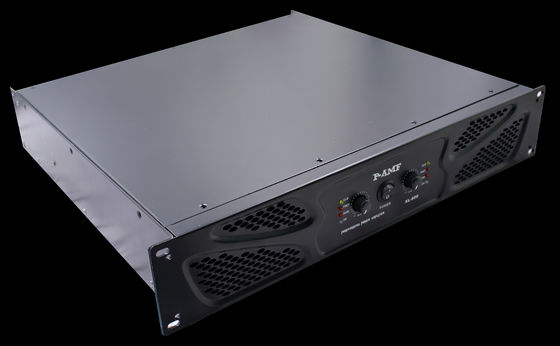

XL800 2 Channel Power Amplifier Home Audio 2×800W Balanced input

Products

Public Address System Amplifier

XL800 2 Channel Power Amplifier Home Audio 2×800W Balanced input

MOQ:	30PCS
Price:	Negotiable
Standard Packaging:	482×429.5×88（mm）
Delivery Period:	30-60days After Deposit
Payment Method:	T/T, Western Union, MoneyGram
Supply Capacity:	300PCS/month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

P-AMF

Certification

CE,ISO

Model Number

XL800

Name:

2 Channel Power Amplifier

8 OHMS:

2×800W

Protection:

DC / Short Circuit / Over Voltage Over Current Protection / Soft Start / Power Amplifier Tube Overheat Protection / Distortion Limiting

Display:

Power Light (green), Protection Light (red), Overload Light (yellow), Signal Light (green)

Brand Customization:

OEM/ODM

Packing Details:

Cartons And Plastic Bags

Highlight:

Home Audio Power Amplifier 2 Channel

2 Channel Power Amplifier Home Audio

Product Description

XL800 Professional Power Amplifier 2 channel Balanced input in black

Description

For this model is the Class A power amplifiers offer high-quality audio reproduction and excellent linearity, but their low efficiency and heat dissipation requirements make them less suitable for applications where power consumption and size are important factors. However, in situations where audio fidelity is paramount, Class A amplifiers remain a popular choice.

Quick Detail

Model		XL-800
TA 1KHz THD≤1% Stereo Power	8 OHMS	2×800W
	4 OHMS	2×1200W
TA 1KHz THD≤1% Bridge Mono Power	8 OHMS	2400W
Frequency Response		10Hz-50KHz-1.5dB
Noise A-weighting		＞100dB
Damping Coefficient		＞200
Maximum Input Level		21dBV/9V
Slew Rate		≥35V/μS
Channel Separation		＞70dB
Input Sensitivity		0.77V/1V/1.4V
Input Impedance(Equilibrium/Disequilibrium)		20K OHMS/10K OHMS
Output Type		Class A
Power Dissipation (half-power,8 OHMS)		＜1200W
Power Source		220V-240V/50Hz
Cooling		Two variable speed fans
Protection		DC / short circuit / over voltage over current protection / soft start / power amplifier tube overheat protection / distortion limiting
Display		Power light (green), Protection light (red), Overload light (yellow), Signal light (green)
Input		Balanced input
Output		Professioanl binding post outputs
Panel Control		Left and right channel volume control, power switch control
Backplane Control		Stereo / Parallel / bridge mono switch, 0.77v/1v/1.4v sensitivity switch
Dimension (mm)		482×429.5×88(mm)

Advantage Of Factory

Our company was established in 1998, specializing in the development, production, and sales of audio electronic products for over 20 years. Complete equipment, advanced production technology, multiple high-efficiency assembly lines, semi-automatic production, ensuring quality and quantity. With strong technology and advanced management experience, perfect after-sales service (for example: after-sales troubleshooting, maintenance consulting, spare parts replacement, etc.) based on the forefront of the audio industry, dedicated to new and old customers for a better tomorrow.
