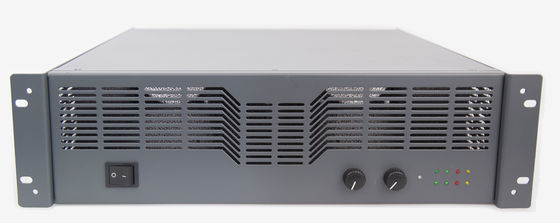

Class AB Public Address System Amplifier 2x200W For Home Theatre
  • name

Class AB Public Address System Amplifier 2x200W For Home Theatre

MOQ: 30PCS
Price: Negotiable
Standard Packaging: 483mm*90mm*460mm
Delivery Period: 30-60days After Deposit
Detail Information
Product Description
Detail Information
Place of Origin
china
Brand Name
P-AMF
Certification
CE,ISO
Model Number
P1
Brand Customization:
OEM/ODM
Color:
Black Or Silvery
Packing Details:
Public Address System Amplifier
Cooling System:
Fan
Frequency Response:
20Hz-20kHz
Output Impedance:
4Ω/8Ω
Power Supply:
AC 110-120V/220-240V 50/60Hz
Weight:
17KG
Highlight:

Class AB Public Address System Amplifier

,

Public Address System Amplifier 2x200W

,

Home Theatre Power Amplifier 200w

Product Description

Public Address System Amplifier 2x200W Class AB Power Amplifier for Home Theatre



Description



1,Power Output: The amplifier provides a power output of 200 watts per channel, resulting in a stereo configuration with a combined power output of 400 watts. This power level is suitable for driving home theater speakers and creating a dynamic soundstage with impactful audio reproduction.



2,Class AB Amplification: The amplifier operates in class AB mode, which combines the low-distortion characteristics of class A amplifiers with the higher efficiency of class B amplifiers. Class AB amplifiers are known for their excellent linearity and low distortion, resulting in accurate and faithful reproduction of audio signals.

.



Quick Detail



Load Impedance负载阻抗 4Ω   8Ω
Stereo Output立体声输出功率 2X300W   2X200W
Bridge Output Power桥接单声道输出 780W   580W

Input Impedance输入阻抗 20K OHMS
Frequency Response频率响应 10Hz-20KHz +/-1dB
Total Harmonic Distortion总谱波失真 ＜0.02%
Slew Rate转换速度 40V/μS
Signal Noise Ratio信噪比 ＞105dB
Damp Modulus 8Ω阻尼系数 ＞150
Output Category输出类别 ClassAB
Cooling冷却 Two Cooling Fans
Input Sensitivity输入灵敏度 0.75V
Input Voltage输入电压 180V-240V
Protection保护 Short circuited/DC/Overload/Turnon delay/High temperature(Optional)
Dimensions (W x H x D), mm 规格尺寸 430mm*132mm*397mm
Gross Weigh毛重 17KG
Packing Dimensions包装体积 0.07m³

Advantage Of Factory



Our company was established in 1998, specializing in the development, production, and sales of audio electronic products for over 20 years. Complete equipment, advanced production technology, multiple high-efficiency assembly lines, semi-automatic production, ensuring quality and quantity. With strong technology and advanced management experience, perfect after-sales service (for example: after-sales troubleshooting, maintenance consulting, spare parts replacement, etc.) based on the forefront of the audio industry, dedicated to new and old customers for a better tomorrow.
