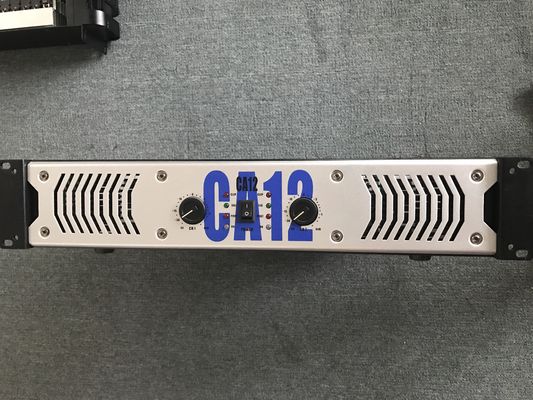

Professional 2-Channel Digital Power Amplifier With Damping Coefficient 240

Professional 2-Channel Digital Power Amplifier with Damping Coefficient 240

Technical parameter

Rated output power: 8 Ω stereo 1500W × 2

Rated output power: 4 Ω Stereo 2400W x 2 Rated output power: 2 Ω Stereo 2880W x 2 Rated bridge output power: 8 Ω Bridge 4800W

Rated bridge output power: 4 Ω Bridge 5600W Power requirement: AC220V (customizable AC110V)

Structure: 2U metal chassis design

Number of channels: 2CH

Harmonic distortion+noise (1kHz, -10dB, 4ohms):<0.1%

Frequency response: 15Hz-30kHz: ± 1dB

Sensitivity 20dB, 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB (eight options available)

Signal to noise ratio: ≥ 100dB

Damping coefficient: (greater than 240,1Khz 8ohms) Conversion rate: 28V/US

Output level: Class-D

LED indicator lights: power/signal/distortion/clipping

Input connector: balanced XLR male and female socket

Output connector: SPEAKON, terminal block

Cooling system: dual variable speed fan, front to rear air supply

Protection functions: overheating, short circuit, DC output

Size: (W x H x D): 483 x 88 x 370mm

Advantage Of Factory

Our company was established in 1998, specializing in the development, production, and sales of audio electronic products for over 20 years. Complete equipment, advanced production technology, multiple high-efficiency assembly lines, semi-automatic production, ensuring quality and quantity. With strong technology and advanced management experience, perfect after-sales service (for example: after-sales troubleshooting, maintenance consulting, spare parts replacement, etc.) based on the forefront of the audio industry, dedicated to new and old customers for a better tomorrow.
