PRODUCTS DETAILS

Home > Products >

XL1050 2 Channel Power Amplifier Class A With Bridge Mono Power

Products

Public Address System Amplifier

XL1050 2 Channel Power Amplifier Class A With Bridge Mono Power

MOQ:	30PCS
Price:	Negotiable
Standard Packaging:	482×429.5×88（mm）
Delivery Period:	30-60days After Deposit
Payment Method:	T/T, Western Union, MoneyGram
Supply Capacity:	300PCS/month

Detail Information

Product Description

Detail Information

Place of Origin

china

Brand Name

P-AMF

Certification

CE,ISO

Model Number

XL1050

Cooling:

Two Variable Speed Fans

Power Source:

220V-240V/50Hz

Output Type:

Class A

Brand Customization:

OEM/ODM

Packing Details:

Cartons And Plastic Bags

Name:

2 Channel Power Amplifier

Highlight:

XL1050 2 Channel Power Amplifier

2 Channel Power Amplifier Class A

Class A Power Amplifier 2 Channel

Product Description

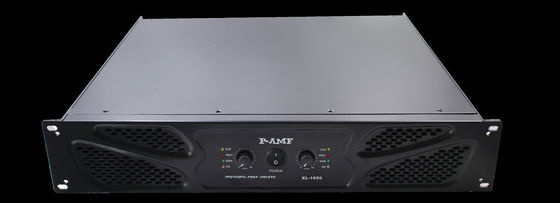

XL1050 2 Channel Power Amplifier with Bridge Mono Power for Outdoor Performances

Description

1,Output Connectivity: Output connectivity options include binding posts or terminal blocks. The choice of connector depends on the type of speakers being used and the wiring configuration required.

,2,Cooling and Protection: Stage power amplifiers generate heat during operation, so they incorporate cooling mechanisms such as fans and heatsinks to dissipate heat and prevent overheating. It's important to ensure proper ventilation and airflow around the amplifier to maintain optimal operating temperatures. Additionally, protection features like short circuit protection, thermal overload protection, and DC offset protection help safeguard the amplifier and connected equipment.

Quick Detail

Model		XL-1050
输出功率 TA 1KHz THD≤1%立体声 Stereo Power	8 OHMS	2×1050W
	4 OHMS	2×1500W
输出功率 TA 1KHz THD≤1%桥接 Bridge Mono Power	8 OHMS	3000W
频率响应 Frequency Response		10Hz-50KHz-1.5dB
信噪比(1KHz,0.775V,A计权) Noise A-weighting		＞100dB
阻尼系数(f=1KHz,8 OHMS) Damping Coefficient		＞200
最大输入电平 Maximum Input Level		21dBV/9V
转换速率 Slew Rate		≥35V/μS
声道分离度 Channel Separation		＞70dB
输入灵敏度 Input Sensitivity		0.77V/1V/1.4V
输入阻抗(平衡/不平衡) Input Impedance(Equilibrium/Disequilibrium)		20K OHMS/10K OHMS
输出类别 Output Type		Class A
功耗(半功率,8 OHMS) Power Dissipation (half-power,8 OHMS)		＜1200W
电源 Power Source		220V-240V/50Hz
冷却 Cooling		无级变速风扇 Two variable speed fans
保护功能 Protection		直流/短路/过压过流保护/软启动/功放管过热保护/失真限幅 DC / short circuit / over voltage over current protection / soft start / power amplifier tube overheat protection / distortion limiting
显示 Display		电源灯(绿),保护灯(红),过载灯(黄),信号灯(绿) Power light (green), Protection light (red), Overload light (yellow), Signal light (green)
输入 Input		卡侬平衡输入 Balanced input
输出 Output		专业接线柱输出 Professioanl binding post outputs
前板控制 Panel Control		左右通道音量控制,电源开关控制 Left and right channel volume control, power switch control
背板控制 Backplane Control		立体声/桥接/并联单声道转换开关,灵敏度0.77V/1V/1.4V转换开关 Stereo / Parallel / bridge mono switch, 0.77v/1v/1.4v sensitivity switch
产品外形尺寸(毫米) Dimension (mm)		482×429.5×88(mm)

Advantage Of Factory

Our company was established in 1998, specializing in the development, production, and sales of audio electronic products for over 20 years. Complete equipment, advanced production technology, multiple high-efficiency assembly lines, semi-automatic production, ensuring quality and quantity. With strong technology and advanced management experience, perfect after-sales service (for example: after-sales troubleshooting, maintenance consulting, spare parts replacement, etc.) based on the forefront of the audio industry, dedicated to new and old customers for a better tomorrow.
